1. Fast speed & high print accuracy

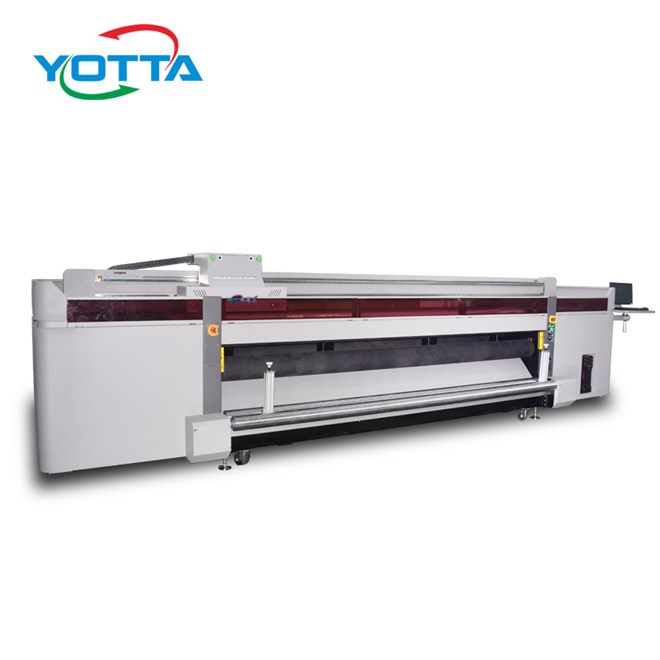

YD-H3200R5 large format uv hybrid printer adopts high-performance Ricoh Gen5 industrial heads which has a fast printing speed. It has a large print size of 3200mm × 1200mm. The highest resolution is up to 2400×600DPI, help to create amazing prints.
2. Variable ink droplet printing
YD-H3200R5 large format UV hybrid printer delivers 7pl-35pl variable ink droplet printing, creating more more natural color transition, saving ink at the same time.
3. Printing on both colied and flat substrates
As a hybrid printer, this is its most prominent feature. From this opint, it is a cost-effective machine designed for those businesses that cover a various types of materials.
4. Eco-friendly special UV curable ink
Our UV printing equipment use eco-friendly uv ink which is no VOC and environmental-friendly. It has better compatibility with various media. Therefore, it can directly print onto the surface of a lot of materials (not all) without any coating treatment. Besides, its curing-time is shorter.
5. Negative pressure system
It can make the ink supply more smootly, so as to aviod the phenomenon of leaking ink and save ink.
6. Constant tension control
This is designed for roll to roll printing, with the function to protect materials effectively from wrinking while printing.
7. Efficient UV LED curing system
Effective, low heat and energy-saving solution, can be used for heat sensitive materials without any damage.
Specifications
| Model |
YD-H3200R5 |
| Print Width |
3200 mm (11 ft) |
| Printhead |
Ricoh GEN5 grey level Piezo print head |
| Printhead Quantity |
2-12 pcs (4-8 colors optional) |
| Print Resolution |
600×2400 dpi |
| Material Thickness |
Up to 50mm (2in) |
| UV Curing System |
LED UV lamp |
| Material Type |
Rigid and flexible flat materials, flexible roll to roll material |
| Ink Color |
C, M, Y, K, Lc, Lm, White ink, Varnish (optional) |
| Ink Type |
Eco-friendly UV curing ink (NO VOC) |
| RIP Software |
Onyx |
| Color Management |
International standard ICC |
| Input Format |
Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI |
| Printer Weight |
2150KG |
| Printer Size |
5800mm[L] × 1580mm[W] × 1530mm[H] (19ft×5.2ft×5ft) |
| Package Size |
6000mm[L] × 1850mm[W] × 1930mm[H] (19.7ft×6ft×6.3ft) |
| Power Requirement |
220 V/AC(±10%), 50/60 HZ; 8.5KW; (38A) |
| Working Environment |
Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃（64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |
