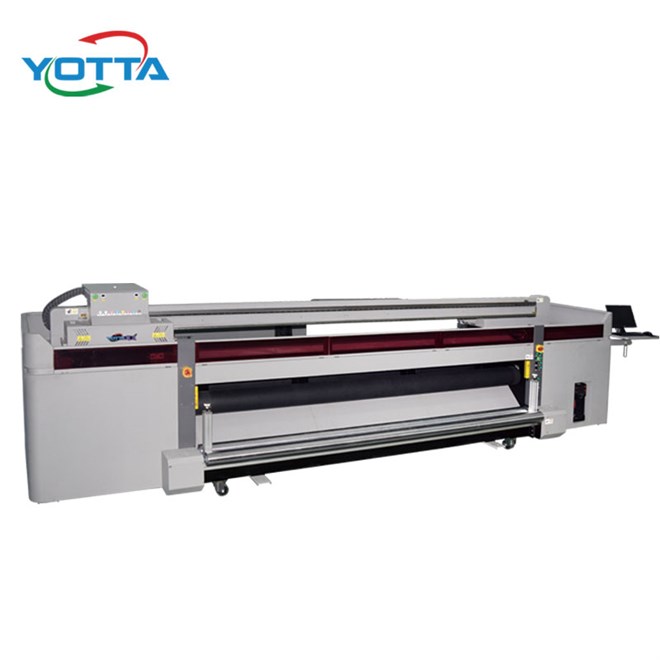

Featured 3.2m print width, YOTTA’s YD-R3200R5 roll to roll printer creates high-resolution digital printing results on soft film, wallpaper, reflective film, canvas, carpet, leather, PVC cloth and other flexible materials. It employs Ricoh Gen5 grey level industrial inkjet printheads, 7 colors optional and vanish printing supportable, which can help users produce full-color and attractive images, meeting the needs of decoration, advertising industry and other commercial uses.
YD-R3200R5 roll to roll printer adopts a series of high-end accessories. With easy-to-use functions and humanized safety protection designs, it can save your time, simplify workflow and improve efficiency and productivity while maintaining the printing quality.
Features of YD-R3200R5 3.2m roll to roll UV printer
High print resolution
- Adopting 2-8pcs Ricoh Gen5 industrial printheads featured 7pl-21pl variable ink droplet printing and capability of printing 2pt font clearly, this 3.2m YD-R3200R5 roll to roll uv printer presents high print resolution of 600×2400 DPI.
- Printer frame made by five-axis machining center, ensure the high precision of the whole machine.
- Use special marble flat scale to debug lead rail straightness (within 0.02mm) and parallelism (0.01mm), to achieve accurate moving of carriage.
Stable and reliable
- High-temperature tempering treated integral steel frame structure, which will not deform during long-distance transport and handling.
- Using double rail steel frame beam structure, the carriage is more stable, achieving faster and smooth printing.
- The beam and the whole frame are made by a large five-axis machining center, one-time processed, ensure high precision.
Easy-to-use and user-friendly designs
- Automatic media thickness measurement function;
- More convenient feeding system design;
- Equipped with mute guide to effectively reduce noise;
- Safety protection grating design to protect machine and personnel safety.
- Double negative pressure system for color ink and white ink separately, delivering more stable ink supply.
Environmental protection
- Eco-friendly UV curing ink which is VOC free, meeting environmental standards;
Sustainable economy
- LED-UV ink curing system which has longer service life compared to mercury lamp curing, no excess heat, energy-saving, also efficient.
- Variable ink droplet printing can effectively reduce ink consumption;
- Ricoh Gen5 inkjet printhead, featured internal heating system, is high-performance, and it is very suitable for long-time working, 24 hours running. If maintain in good condition, it lifetime can reach about 5 years.
Specifications
Model |
YD-R3200R5 |
Print Width |
3200 mm (11 ft) |
Printhead |
Ricoh Gen5 grey level Piezo print head |
Printhead Quantity |
2-8 pcs (4-8 colors optional) |
Print Resolution |
600×2400 DPI |
Material Thickness |
Up to 50mm (2in) |
Material type |
Roll to roll material |
Ink Type |
Eco-friendly UV curing ink (NO VOC) |
Ink Color |
C, M, Y, K, Lc, Lm, White ink, Varnish (optional) |
UV Curing System |
LED UV lamp |
RIP Software |
Onyx |
Color Management |
International standard ICC |
Input Format |
PDF, JPEG, TIFF, EPS, AI |
Printer Weight |
2300KG |
Printer Size |
6600mm[L] × 1500mm[W] × 1600mm[H] (21.6ft×4.9ft×5.2ft) |
Package Size |
6900mm[L] × 1790mm[W] × 1810mm[H] (22.6ft×5.9ft×5.9ft) |
Power Requirement |
220V/AC(±10%), 50/60 HZ, 6KW |
Working Environment |
Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |
